Indicators

Indicators live in three buckets in the registry (src/indicators/mod.rs):

• Overlays draw on the price chart (bands, clouds, volume profiles).
• Panels render as separate rows below the price chart (oscillators, volume).
• External pull from third-party APIs (Binance derivatives, alternative.me).

Every name and every alias below is accepted by the CLI (-p <name>) and by the generate_chart MCP tool’s indicators parameter. Screenshots are rendered from AAPL daily data (overlays and panels) and BTCUSDT daily data (external) — regenerate with ./scripts/gen_screenshots.sh.

Overlays

Summary

Name	Aliases
ema_stack	ema
bbands	bollinger
keltner
donchian
vwap
vwap_bands
supertrend
sar	parabolic_sar
ichimoku
heikin_ashi	ha
pivot	pivot_points
volume_profile	vp, vpvr
session_vp	svp, session_volume_profile
hvn_lvn	vp_nodes, volume_nodes
naked_poc	npoc
tpo	market_profile

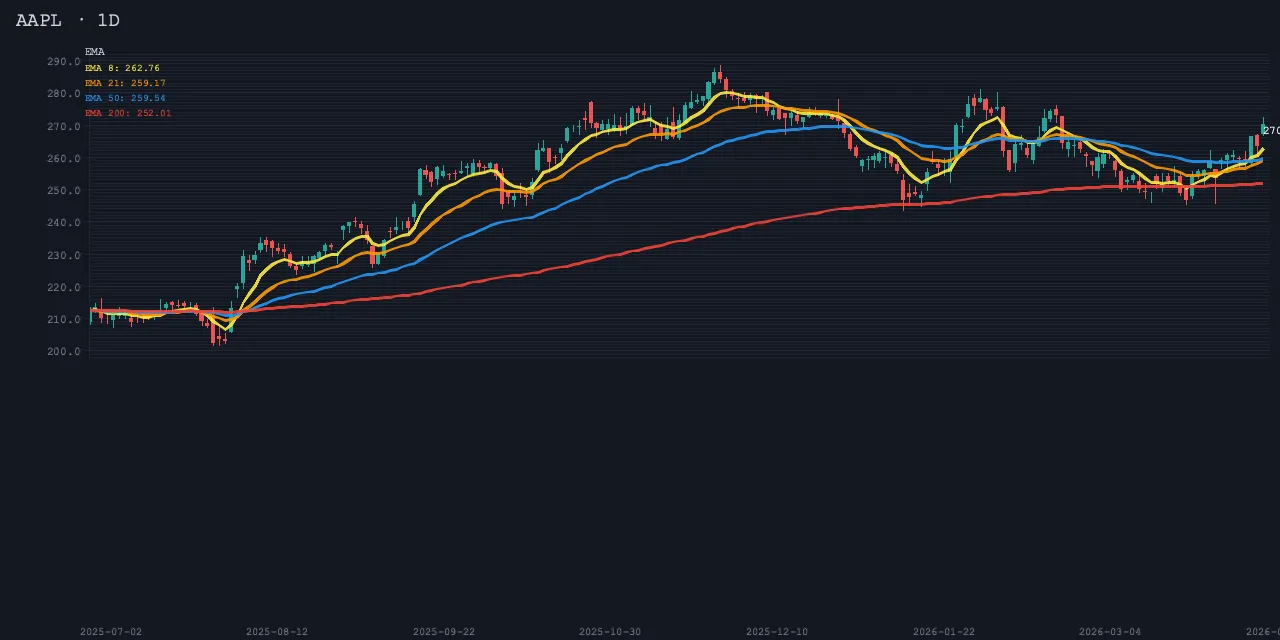

ema_stack

EMA Stack — 4 exponential moving averages (8/21/50/200)

Aliases: ema

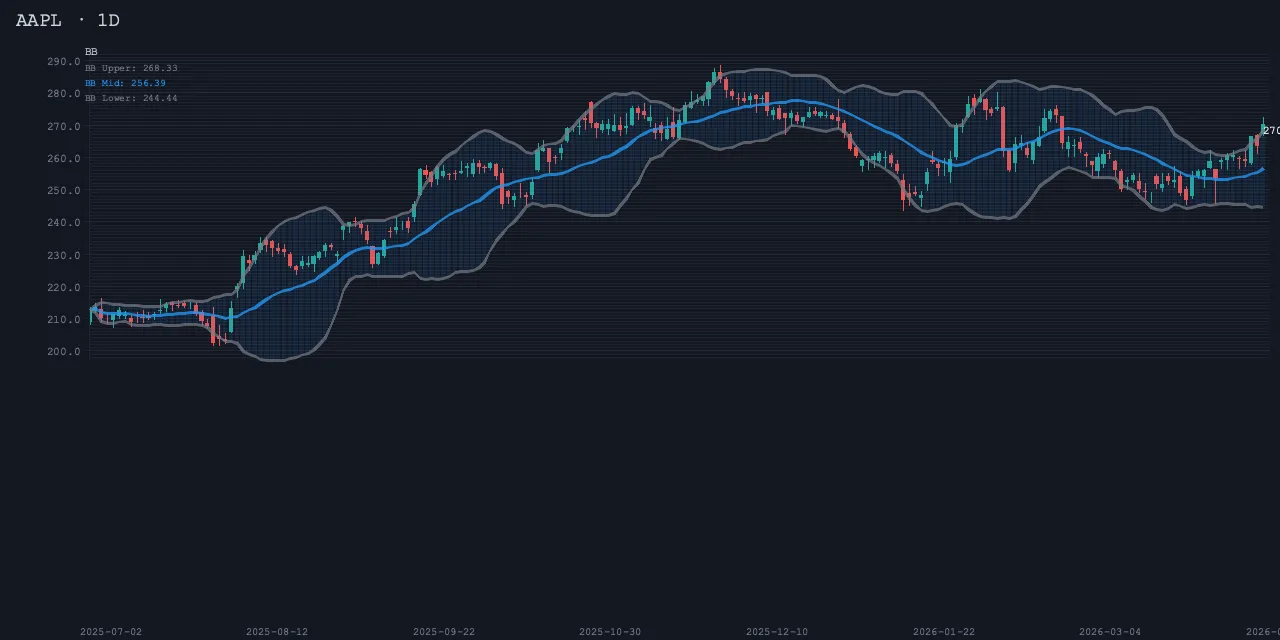

bbands

Bollinger Bands — volatility bands around SMA

Aliases: bollinger

Parameters:

Param	Type	Default	Description
period	integer	20
std_dev	number	2.0

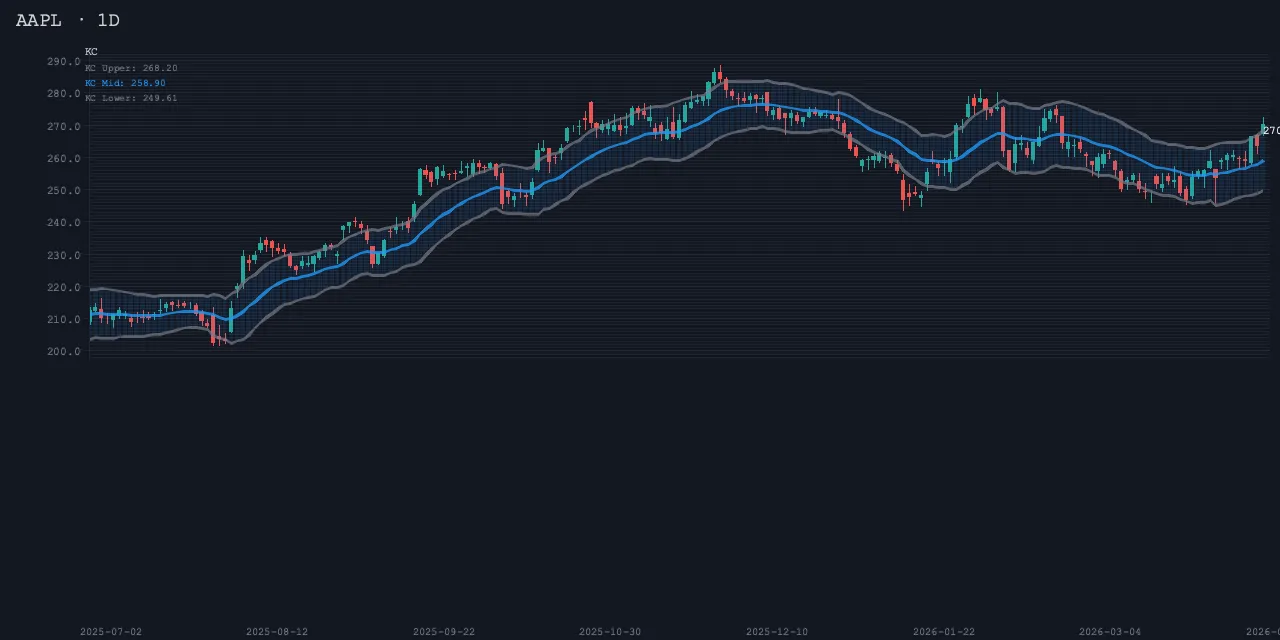

keltner

Keltner Channels — ATR-based volatility bands

Parameters:

Param	Type	Default	Description
period	integer	20
multiplier	number	1.5

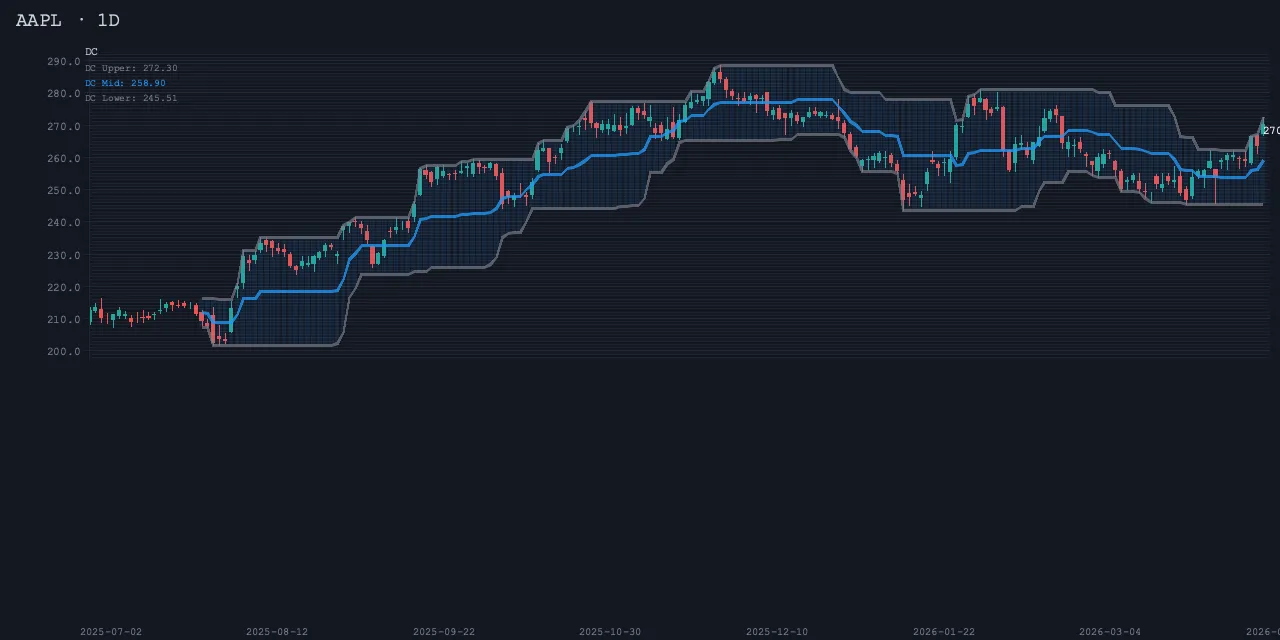

donchian

Donchian Channels — breakout trading bands

Parameters:

Param	Type	Default	Description
period	integer	20

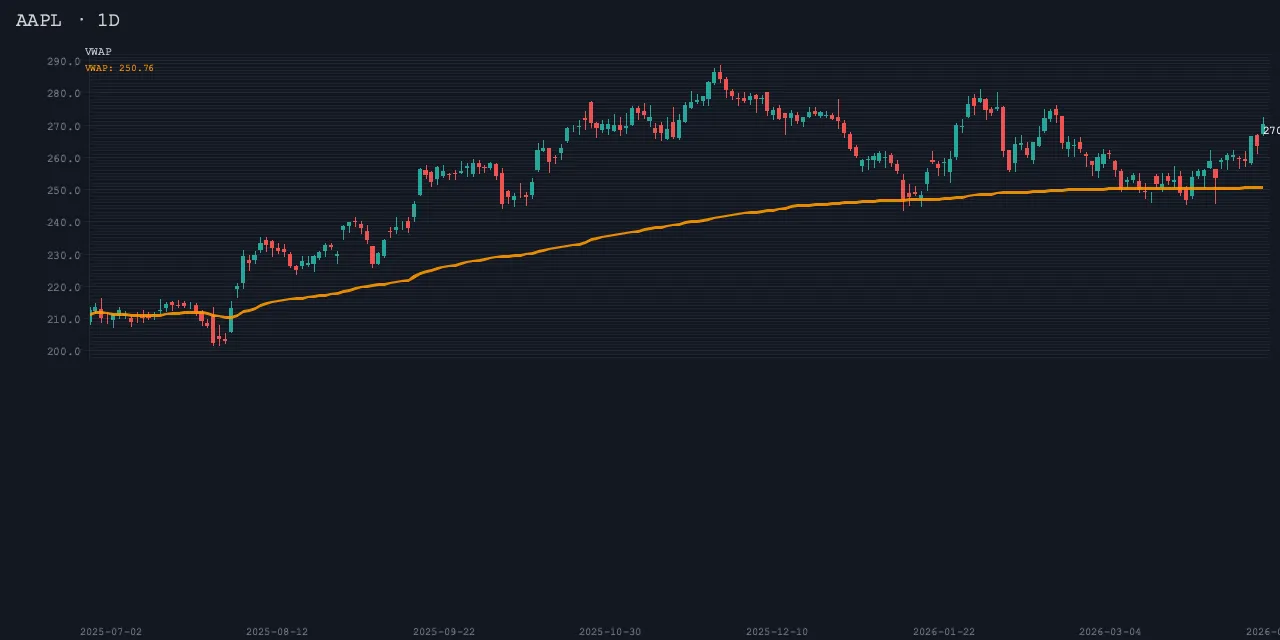

vwap

Volume Weighted Average Price — intraday anchor

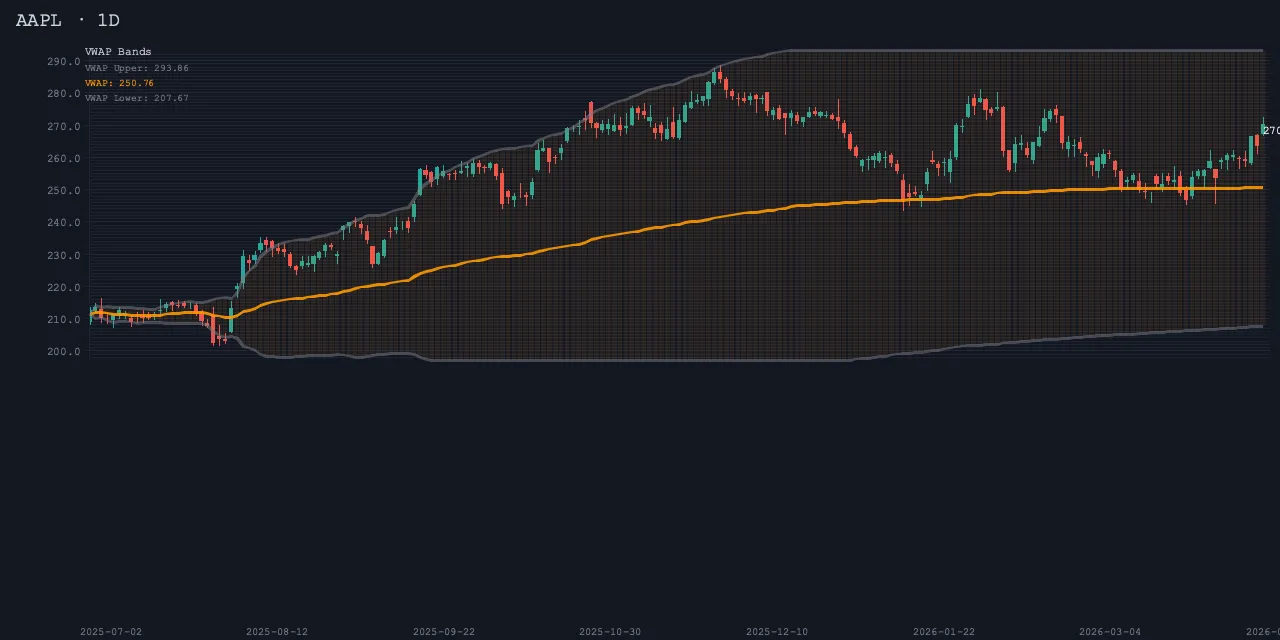

vwap_bands

VWAP Bands — standard deviation bands around VWAP

Parameters:

Param	Type	Default	Description
std_dev	number	2.0

supertrend

Supertrend — ATR-based trend follower

Parameters:

Param	Type	Default	Description
period	integer	10
multiplier	number	3.0

sar

Parabolic SAR — trailing stop / trend reversal

Aliases: parabolic_sar

Parameters:

Param	Type	Default	Description
af_start	number	0.02
af_step	number	0.02
af_max	number	0.2

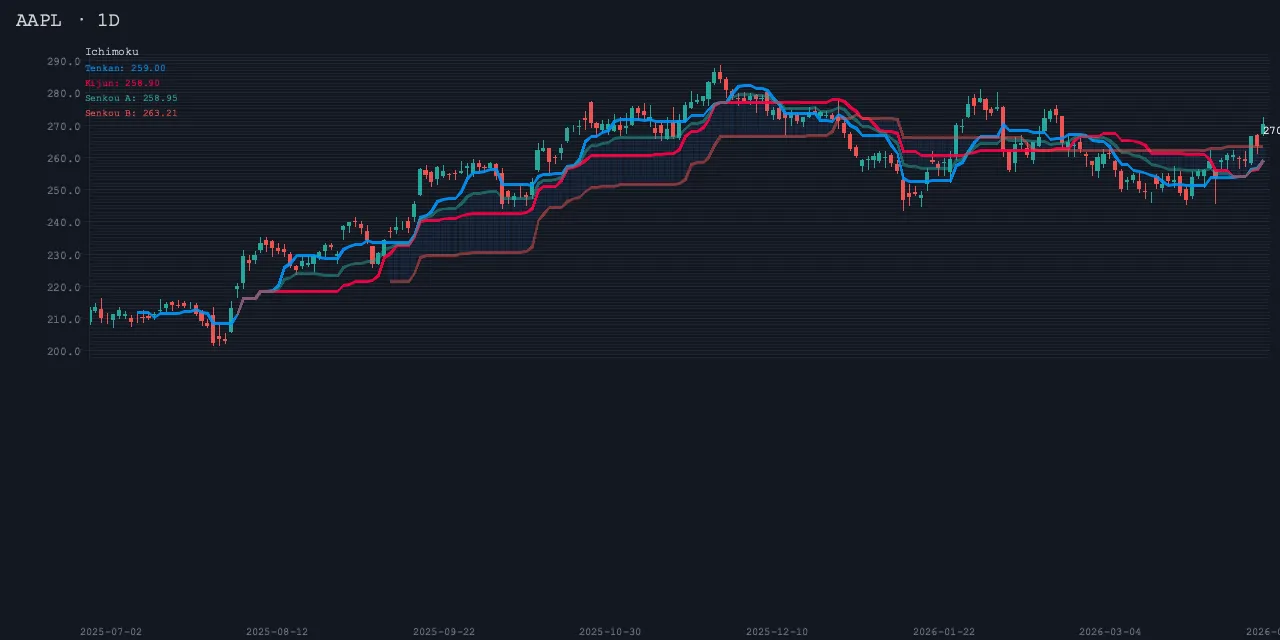

ichimoku

Ichimoku Cloud — trend, support/resistance, momentum

Parameters:

Param	Type	Default	Description
tenkan	integer	9
kijun	integer	26
senkou_b	integer	52

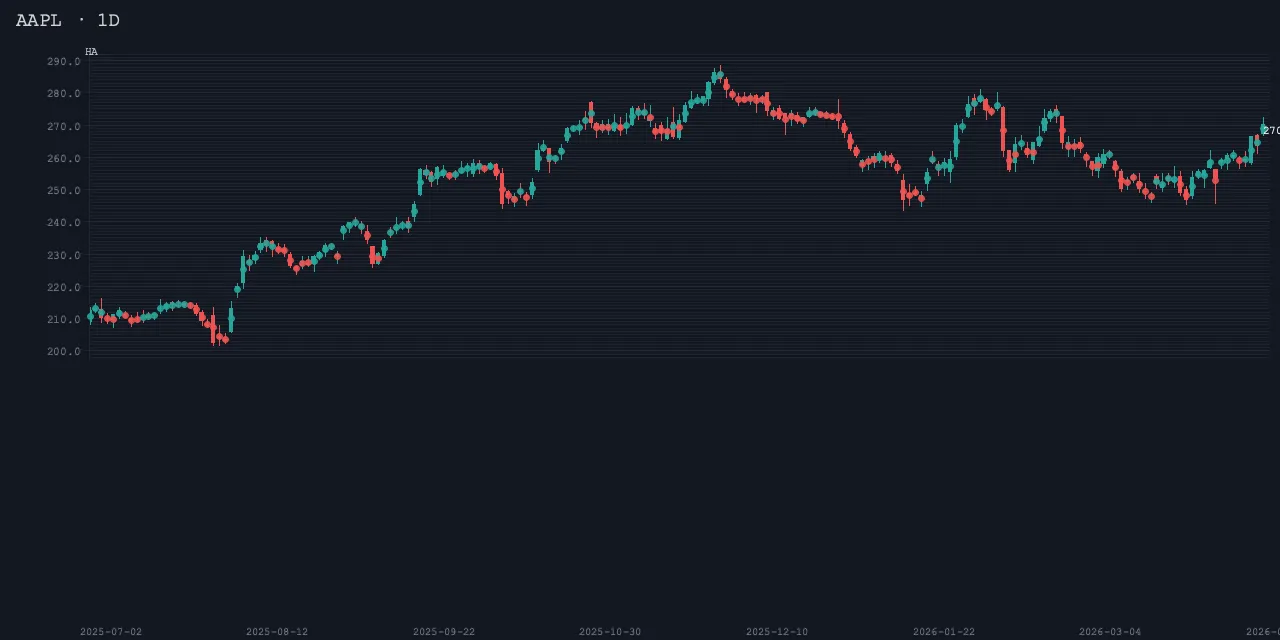

heikin_ashi

Heikin Ashi — smoothed trend candles

Aliases: ha

pivot

Pivot Points — support/resistance from prior bar

Aliases: pivot_points

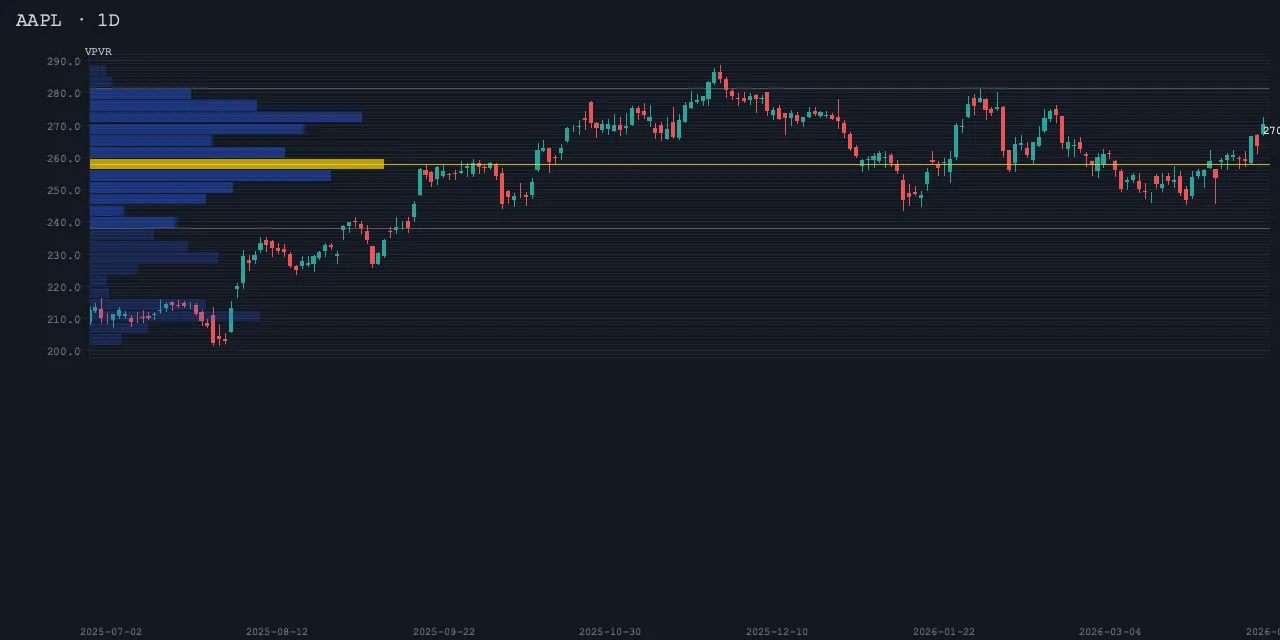

volume_profile

Volume Profile Visible Range — horizontal volume histogram with POC/VAH/VAL

Aliases: vp, vpvr

Parameters:

Param	Type	Default	Description
bins	integer	24
side	string	left	left or right
range_bars	integer	null	only compute over last N bars (null = all)
split_up_down	boolean	false	separate up/down volume colors
color_up	string	#26a69a	hex color for up-volume
color_down	string	#ef5350	hex color for down-volume
opacity	number	0.35	overall opacity multiplier (0.0-1.0)

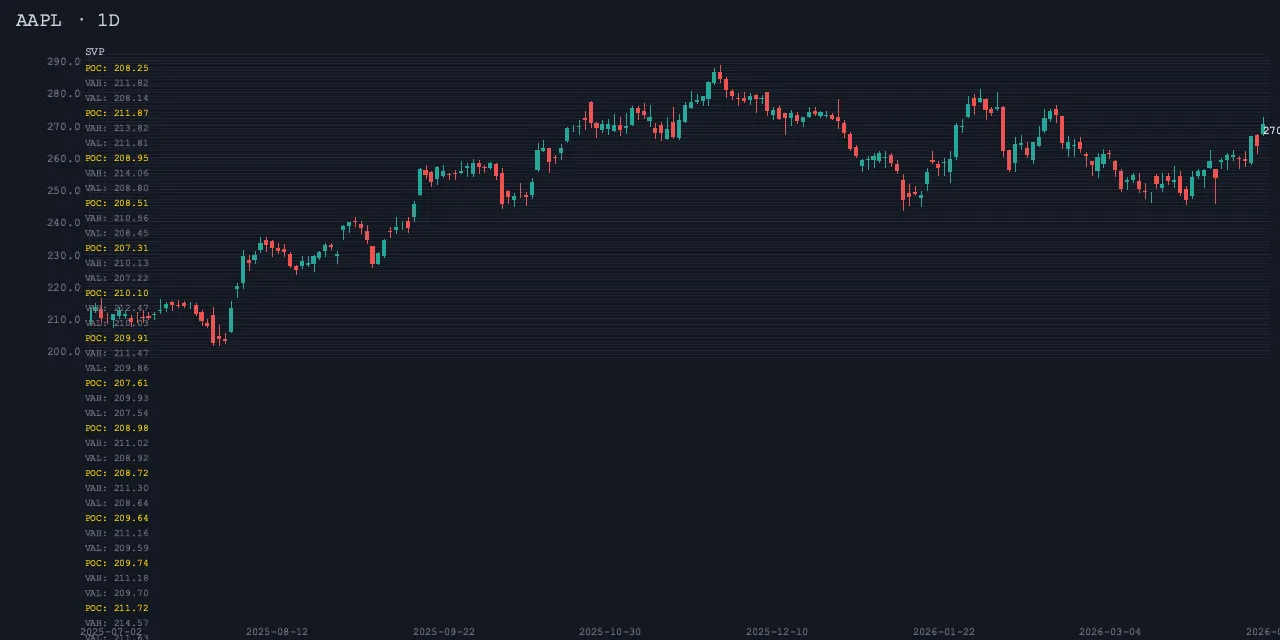

session_vp

Session Volume Profile — per-session POC/VAH/VAL that reset each day/week

Aliases: svp, session_volume_profile

Parameters:

Param	Type	Default	Description
bins	integer	24
session	string	daily	daily, weekly, or hourly
bars_per_session	integer	null	override session by fixed bar count
show_value_area	boolean	true	draw VAH/VAL in addition to POC

hvn_lvn

High/Low Volume Nodes — auto-detected support/resistance from the volume profile

Aliases: vp_nodes, volume_nodes

Parameters:

Param	Type	Default	Description
bins	integer	48
range_bars	integer	null	only scan the last N bars (null = all)
neighborhood	integer	2	bins on each side to compare for local extrema
min_prominence	number	0.1	minimum relative prominence (0-1) vs max bin
top_n	integer	null	keep only the N strongest nodes of each kind
show_hvn	boolean	true
show_lvn	boolean	true

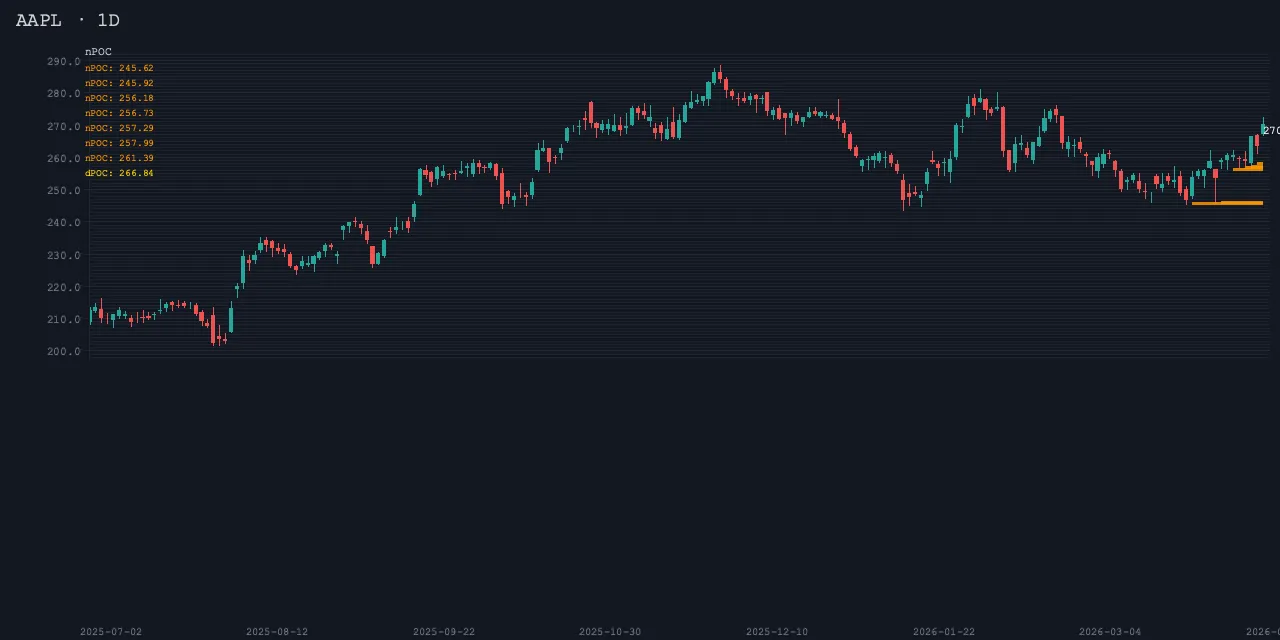

naked_poc

Naked POCs — unfilled point-of-control levels from previous sessions

Aliases: npoc

Parameters:

Param	Type	Default	Description
bins	integer	24
session	string	daily	daily, weekly, hourly
bars_per_session	integer	null
max_sessions	integer	20	look back at most N sessions
include_current	boolean	true	also draw the developing POC of the current session

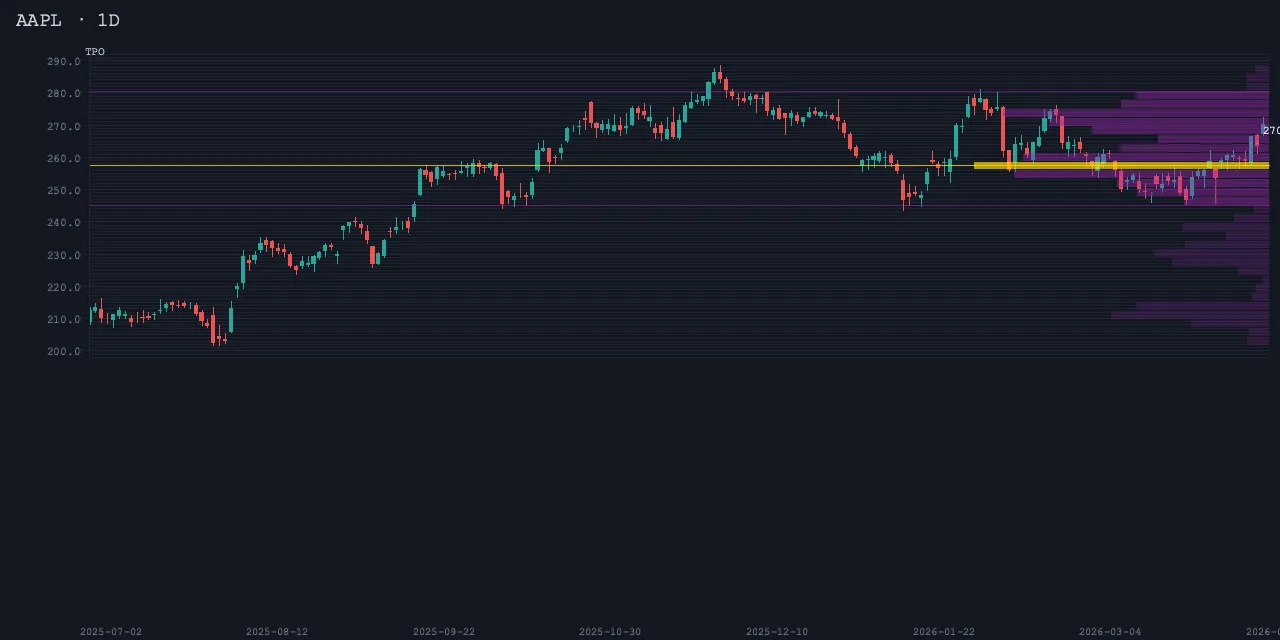

tpo

Time Price Opportunity — time-based market profile with POC/VAH/VAL

Aliases: market_profile

Parameters:

Param	Type	Default	Description
bins	integer	32
side	string	right	left or right
range_bars	integer	null	only compute over last N bars
opacity	number	0.35	bar opacity (0.0-1.0)

Panels

Summary

Name	Aliases
cipher_b
macd
rsi
wavetrend
stoch	stochastic
atr
obv
cci
roc
mfi
williams_r	willr
cmf
adx
ad	ad_line
histvol	hv
kalman_volume	kalman, kvf
rsi_mfi_stoch	rsi_combo, combo

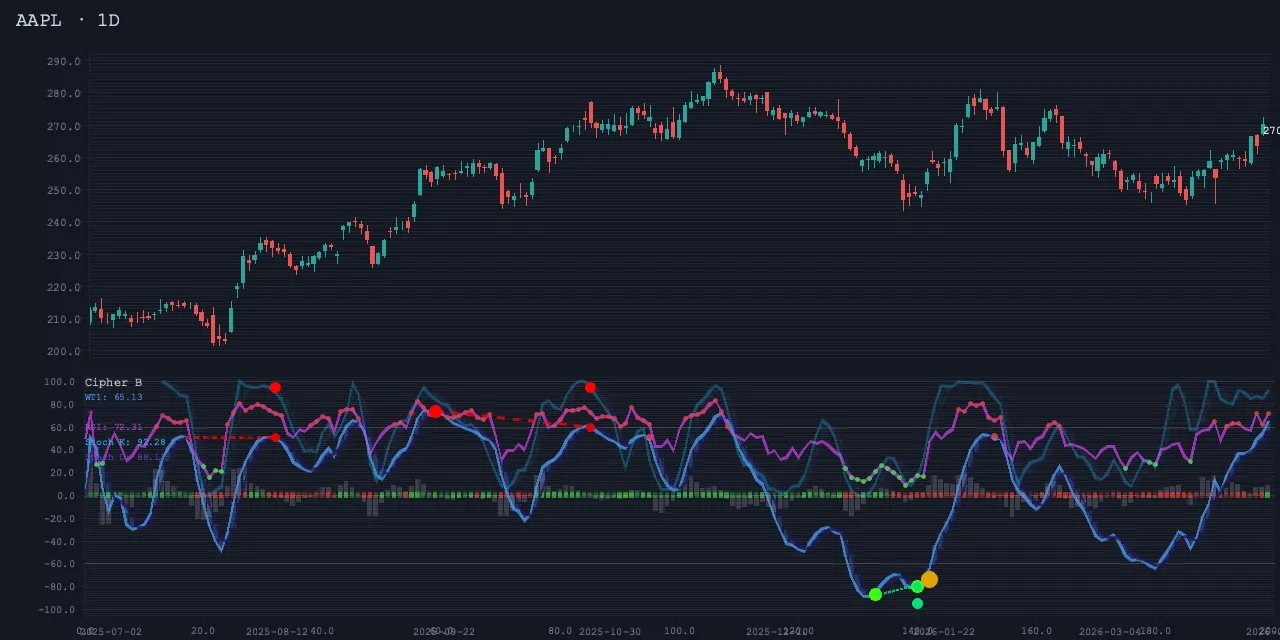

cipher_b

Market Cipher B — composite (WaveTrend + divergences + RSI + Stoch RSI + MFI)

Parameters:

Param	Type	Default	Description
dot_mode	string	strict	classic (WT cross only) or strict (with RSI+StochRSI filter)
wt_channel_length	integer	9
wt_average_length	integer	12
wt_oversold	number	-53
wt_overbought	number	53
show_divergences	boolean	true	render divergence lines on wave trend

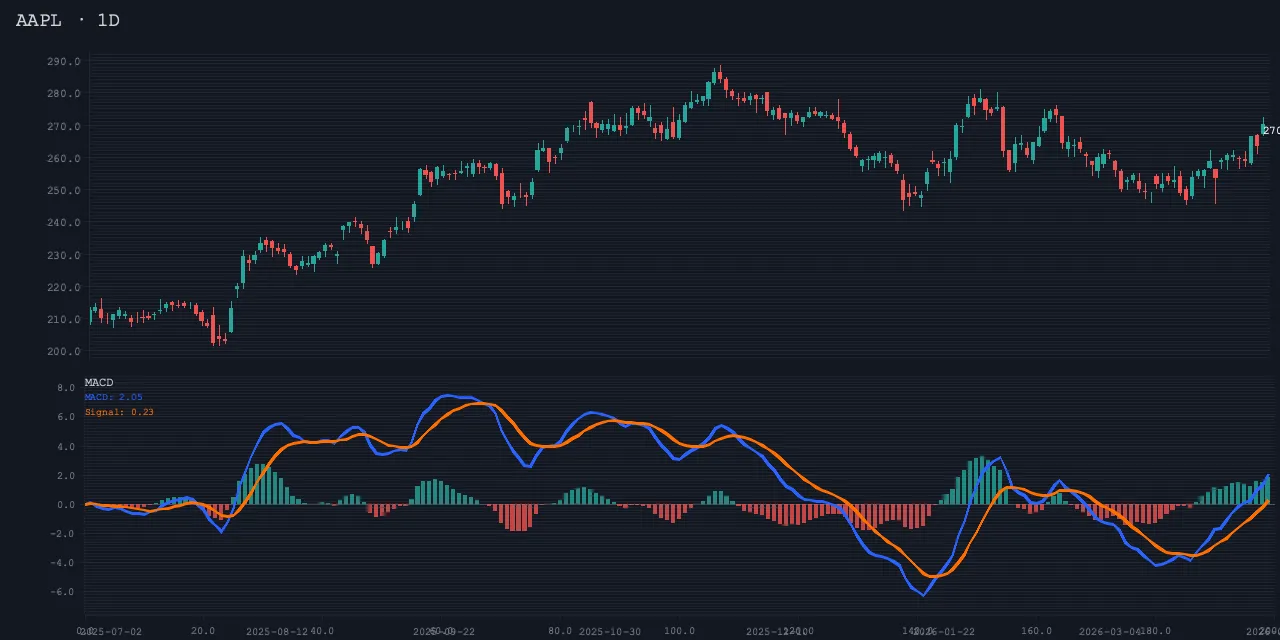

macd

Moving Average Convergence Divergence — trend momentum

Parameters:

Param	Type	Default	Description
fast	integer	12
slow	integer	26
signal	integer	9

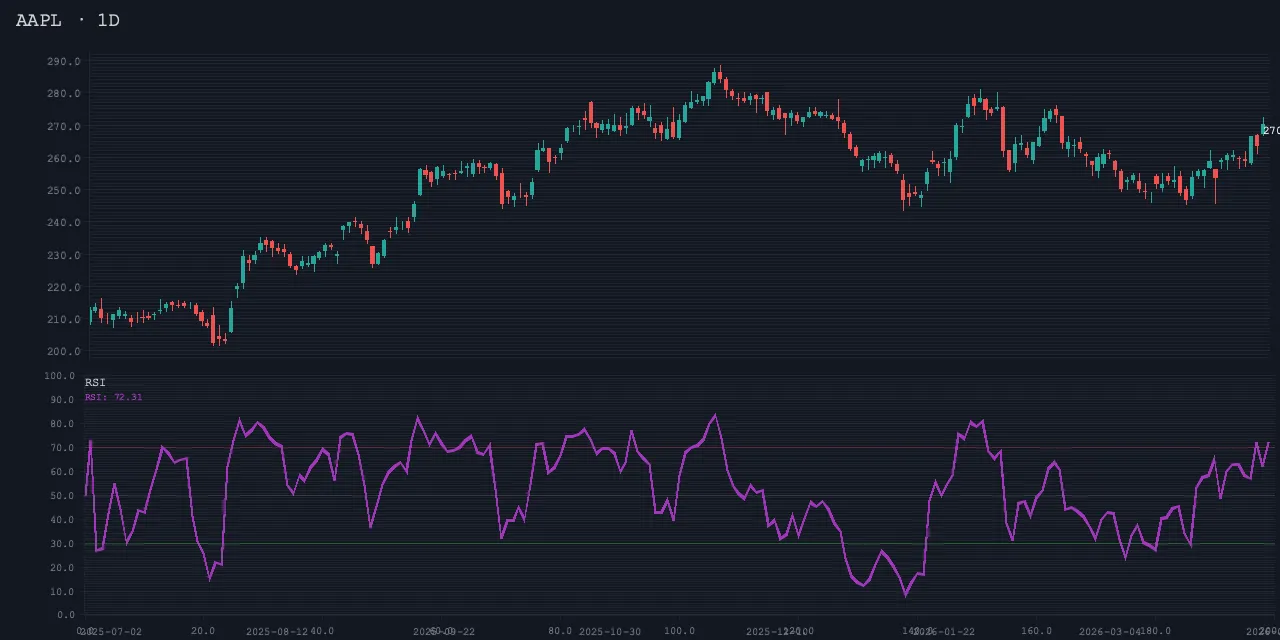

rsi

Relative Strength Index — momentum oscillator (0-100)

Parameters:

Param	Type	Default	Description
length	integer	14	RSI period

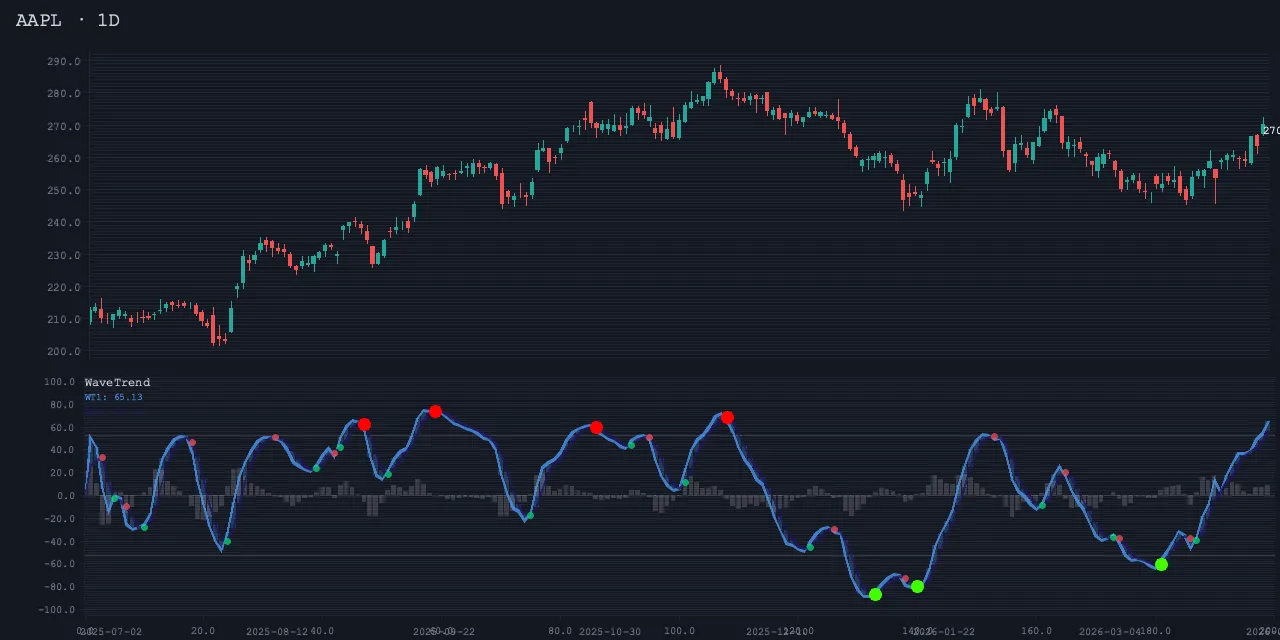

wavetrend

WaveTrend Oscillator — cycle-based momentum

Parameters:

Param	Type	Default	Description
ch_len	integer	9
avg_len	integer	12

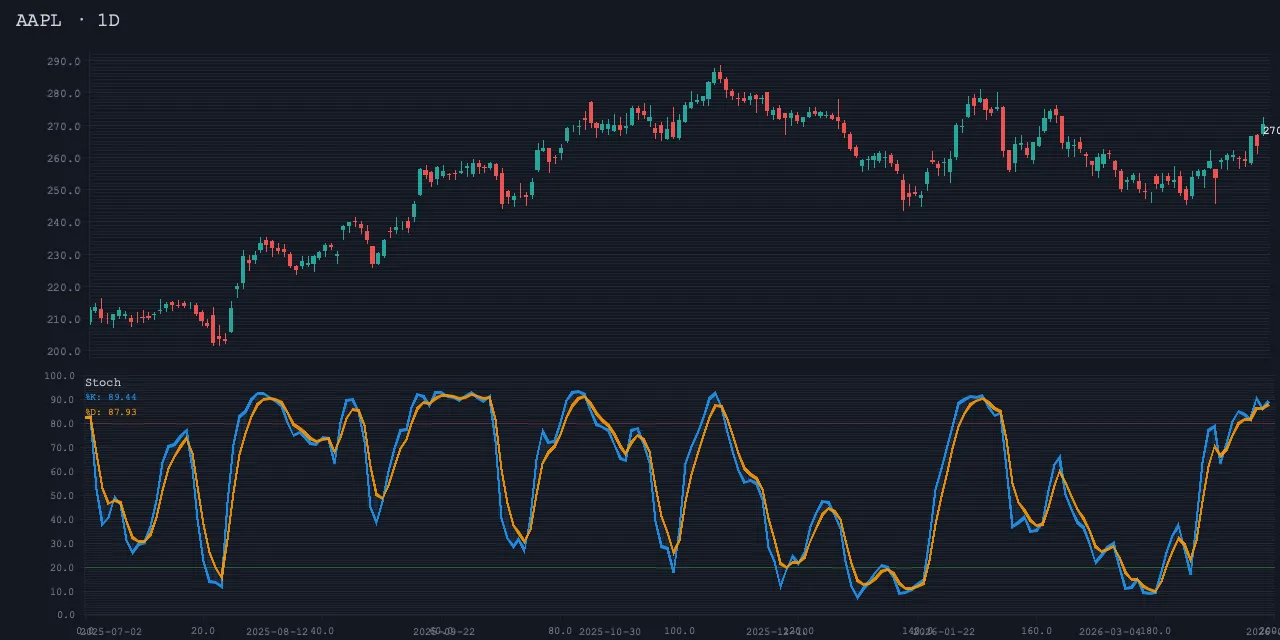

stoch

Slow Stochastic — overbought/oversold oscillator

Aliases: stochastic

Parameters:

Param	Type	Default	Description
period	integer	14
k_smooth	integer	3
d_smooth	integer	3

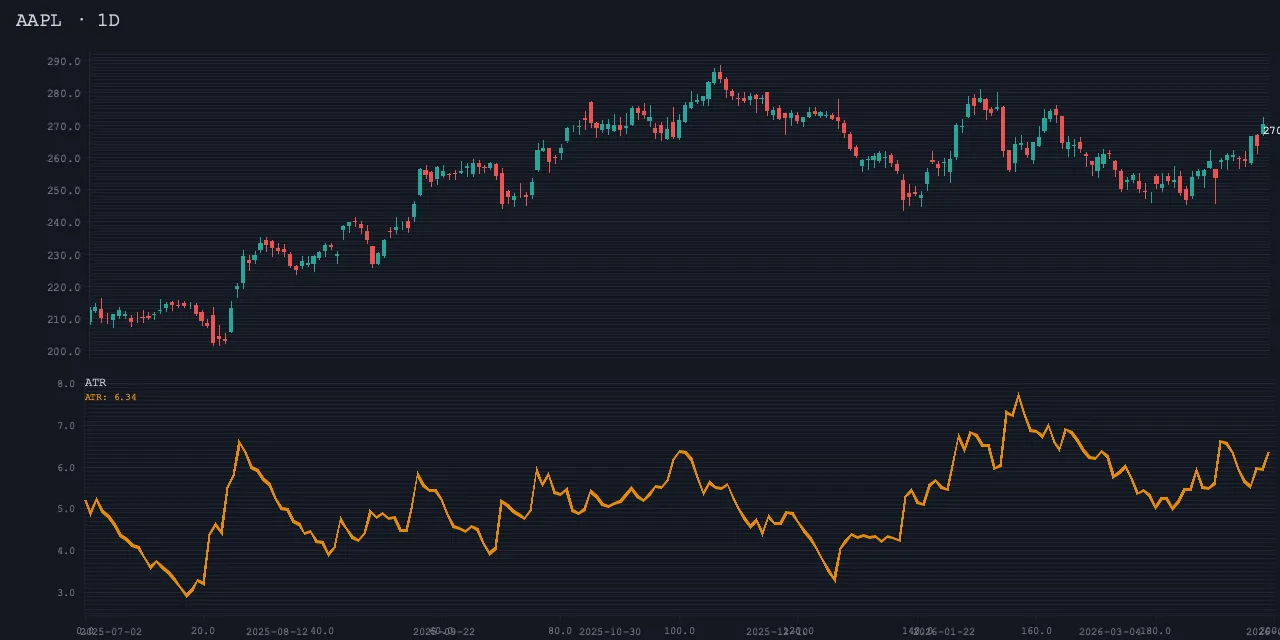

atr

Average True Range — volatility measure

Parameters:

Param	Type	Default	Description
period	integer	14

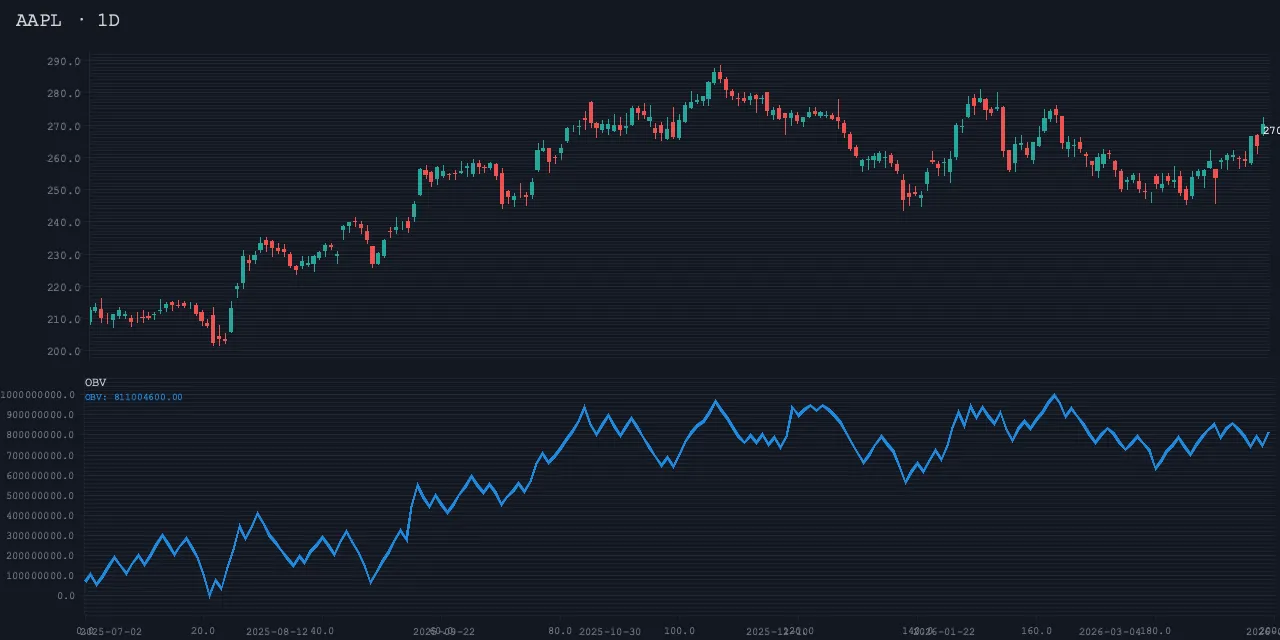

obv

On-Balance Volume — cumulative volume flow

cci

Commodity Channel Index — cyclical momentum

Parameters:

Param	Type	Default	Description
period	integer	20

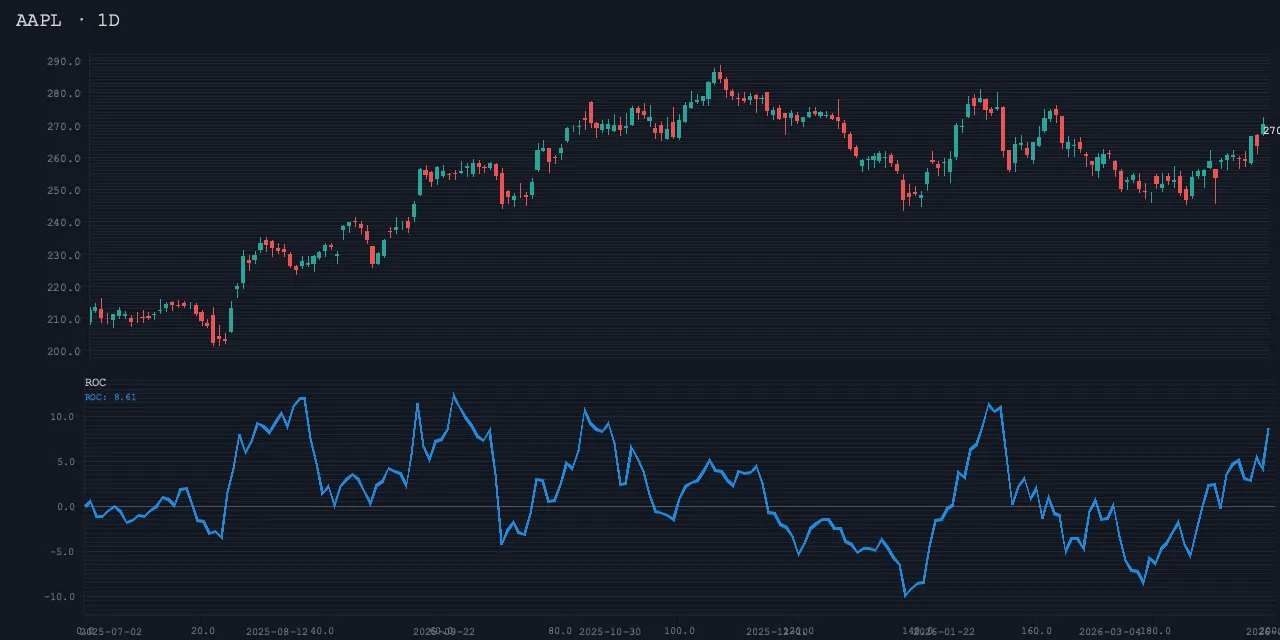

roc

Rate of Change — momentum percentage

Parameters:

Param	Type	Default	Description
period	integer	14

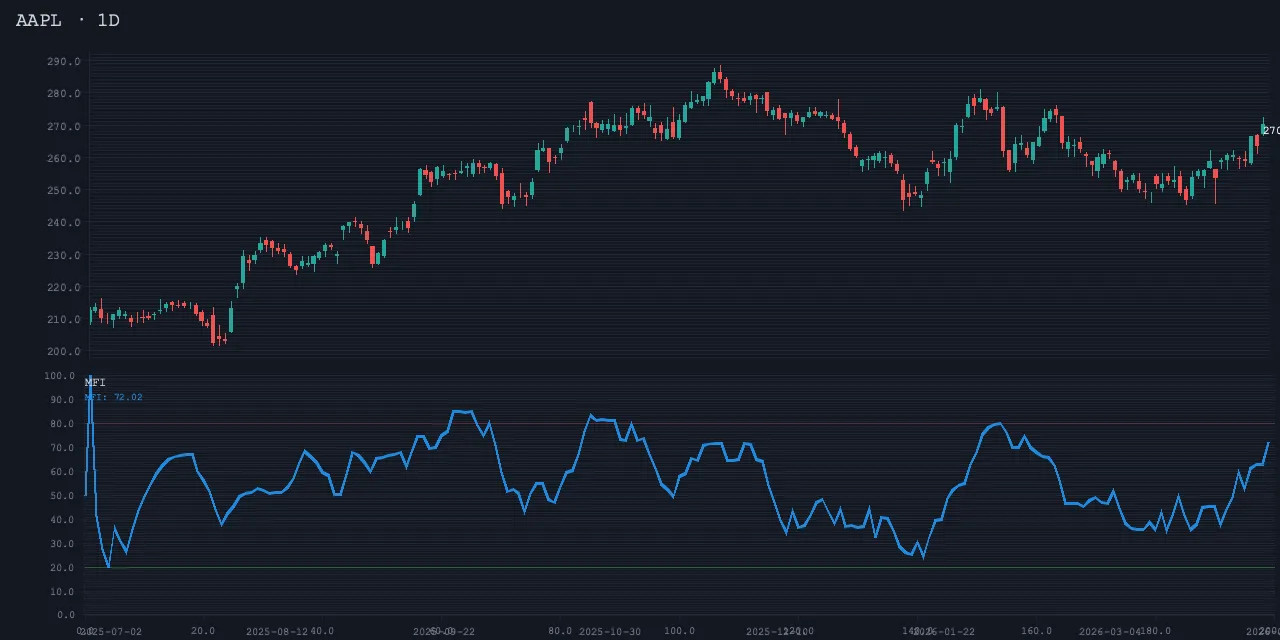

mfi

Money Flow Index — volume-weighted RSI

Parameters:

Param	Type	Default	Description
period	integer	14

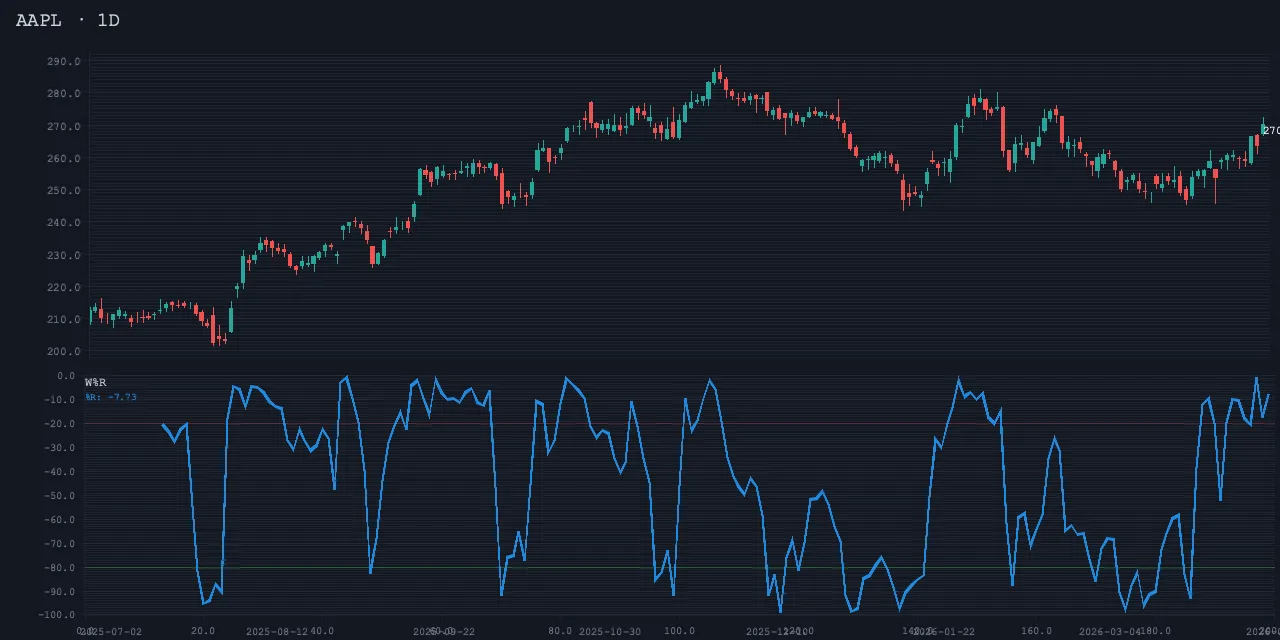

williams_r

Williams %R — momentum reversal indicator

Aliases: willr

Parameters:

Param	Type	Default	Description
period	integer	14

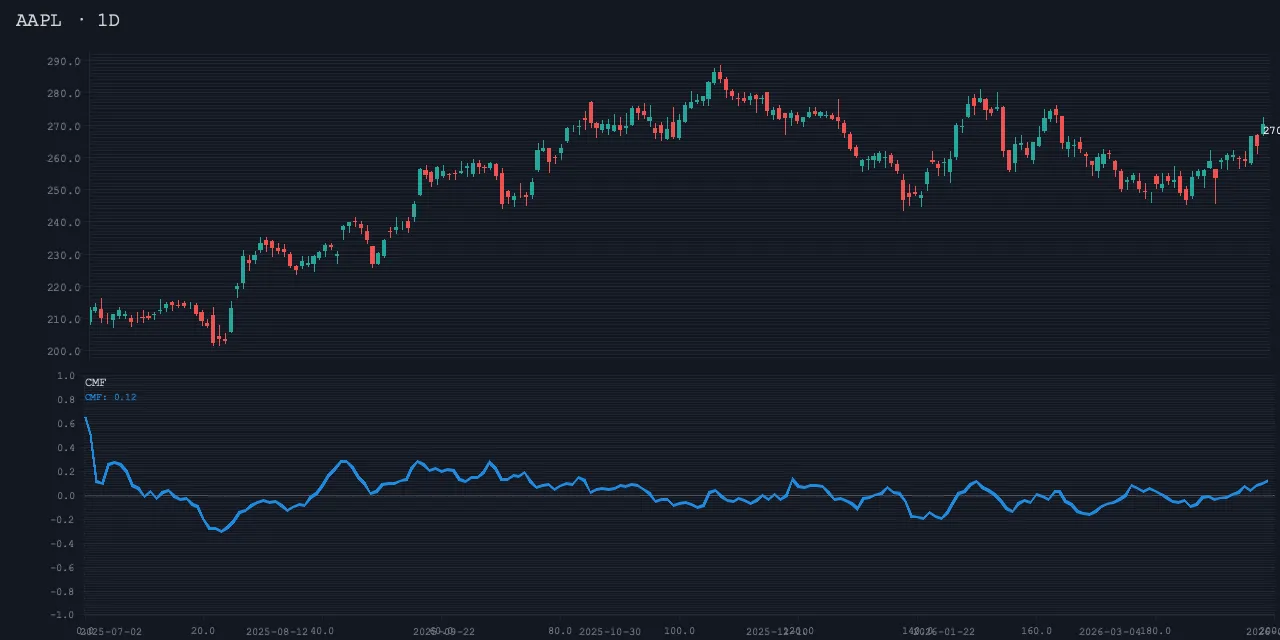

cmf

Chaikin Money Flow — buying/selling pressure

Parameters:

Param	Type	Default	Description
period	integer	20

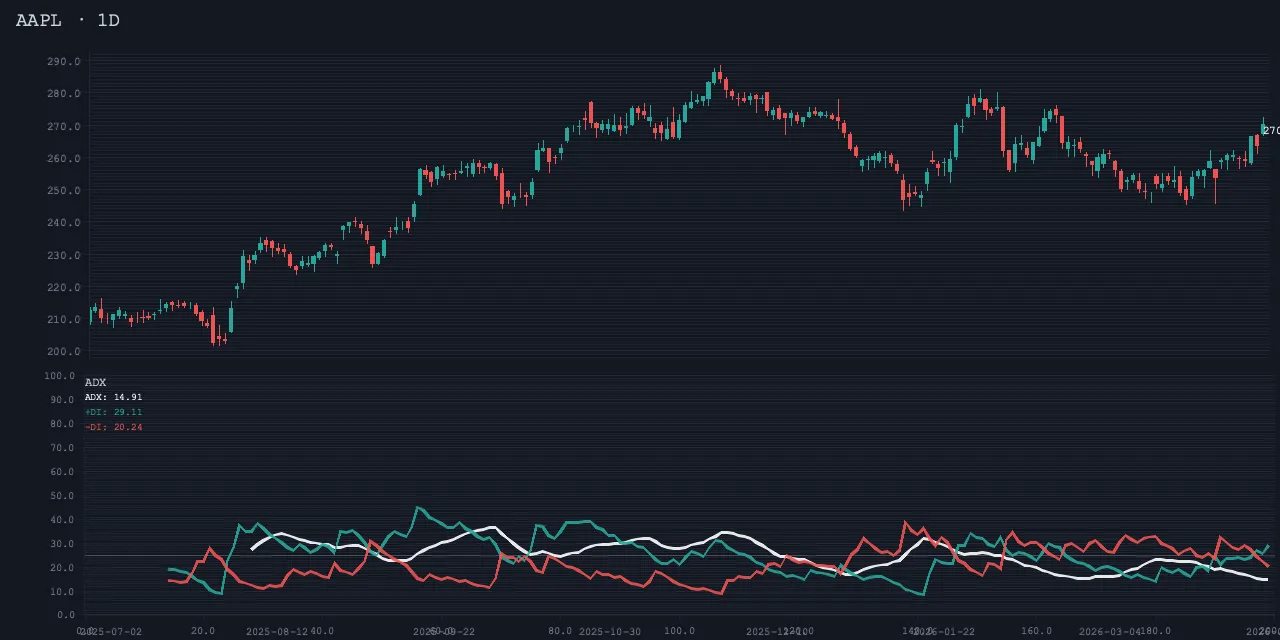

adx

Average Directional Index — trend strength with +DI/-DI

Parameters:

Param	Type	Default	Description
period	integer	14

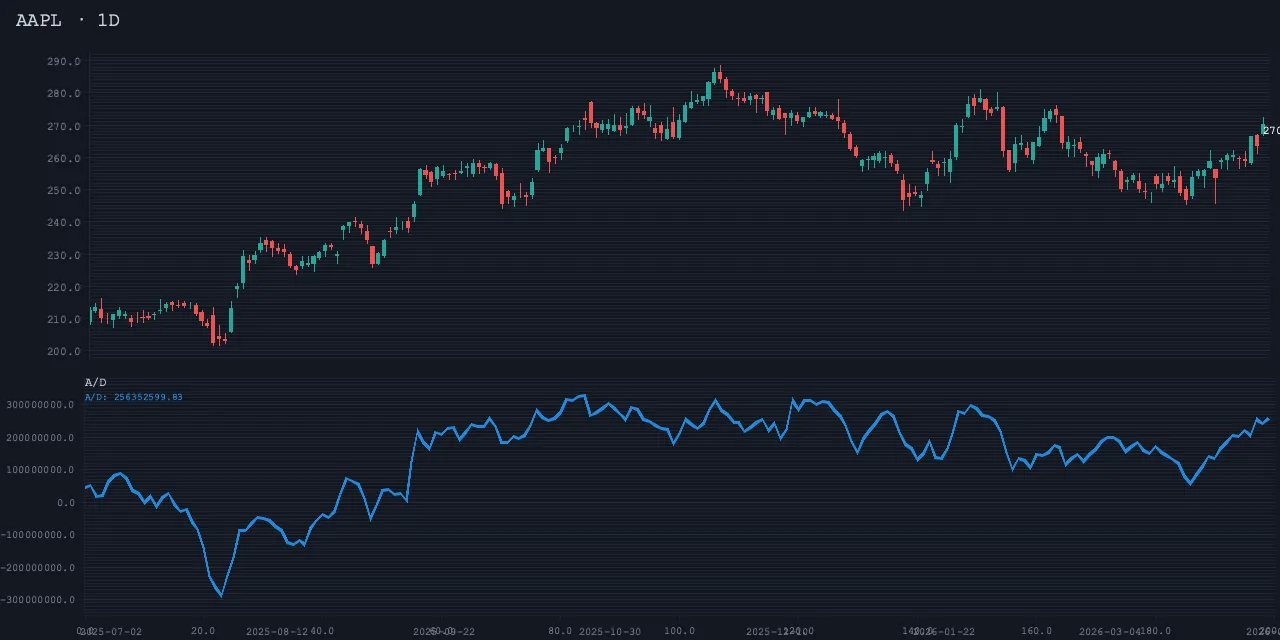

ad

Accumulation/Distribution Line — volume flow

Aliases: ad_line

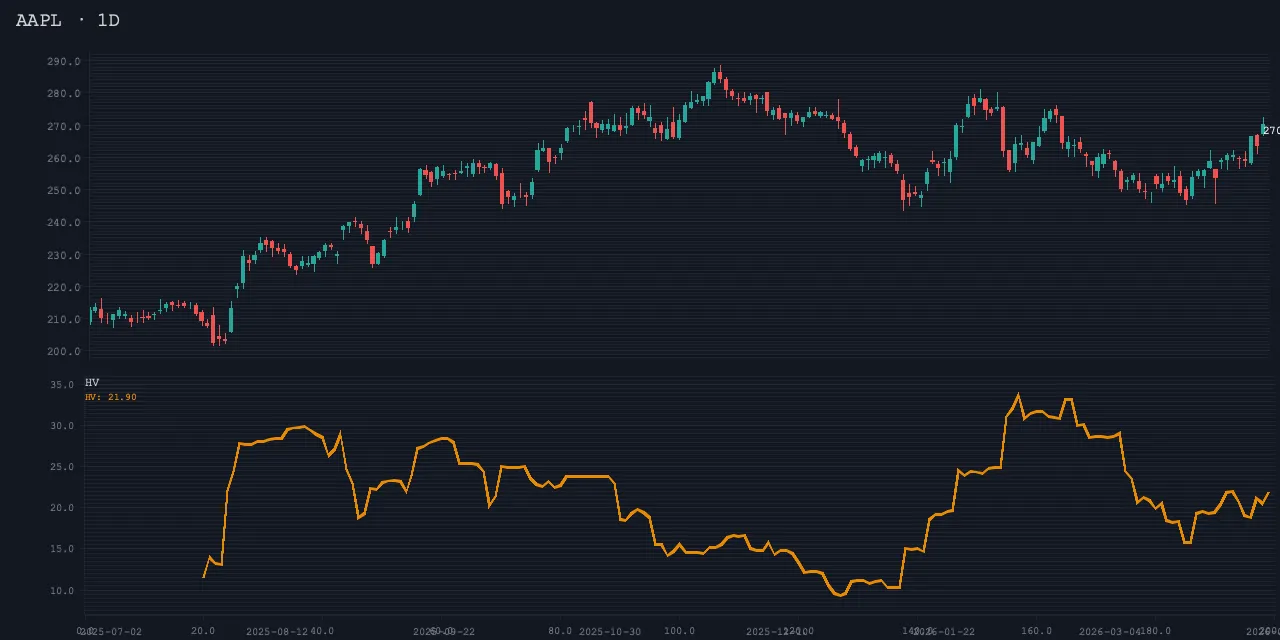

histvol

Historical Volatility — annualized log-return std dev

Aliases: hv

Parameters:

Param	Type	Default	Description
period	integer	20

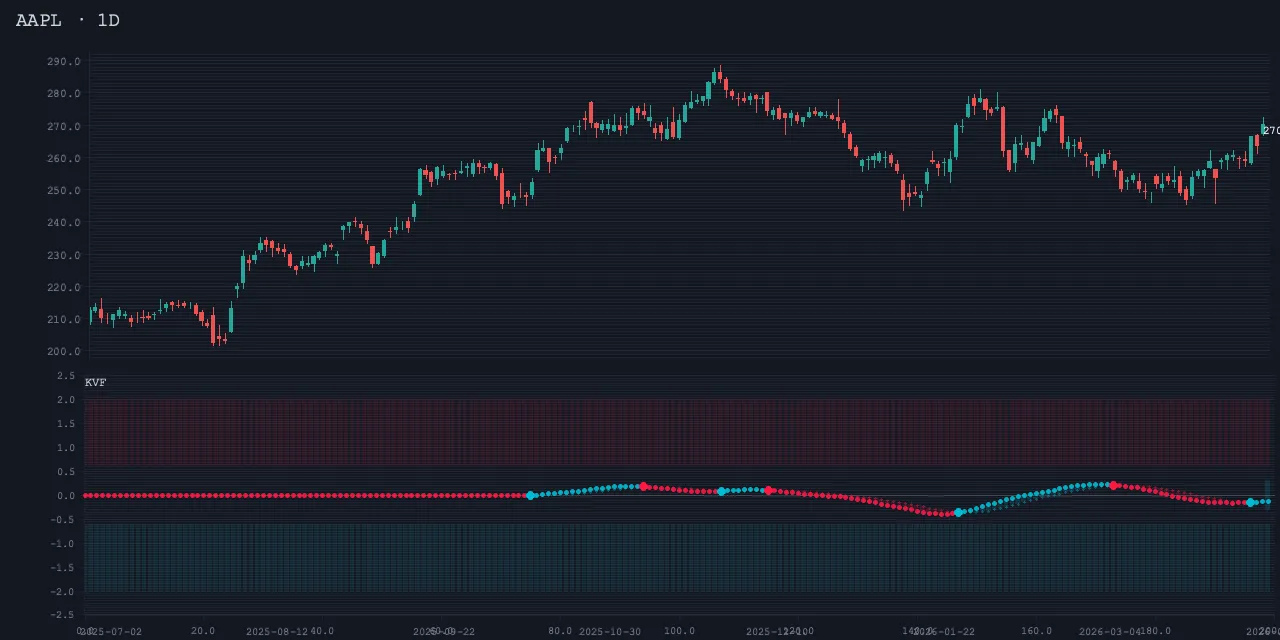

kalman_volume

Kalman Volume Filter — smoothed volume zone oscillator

Aliases: kalman, kvf

Parameters:

Param	Type	Default	Description
vzo_length	integer	70
k	number	0.06
sig_length	integer	10

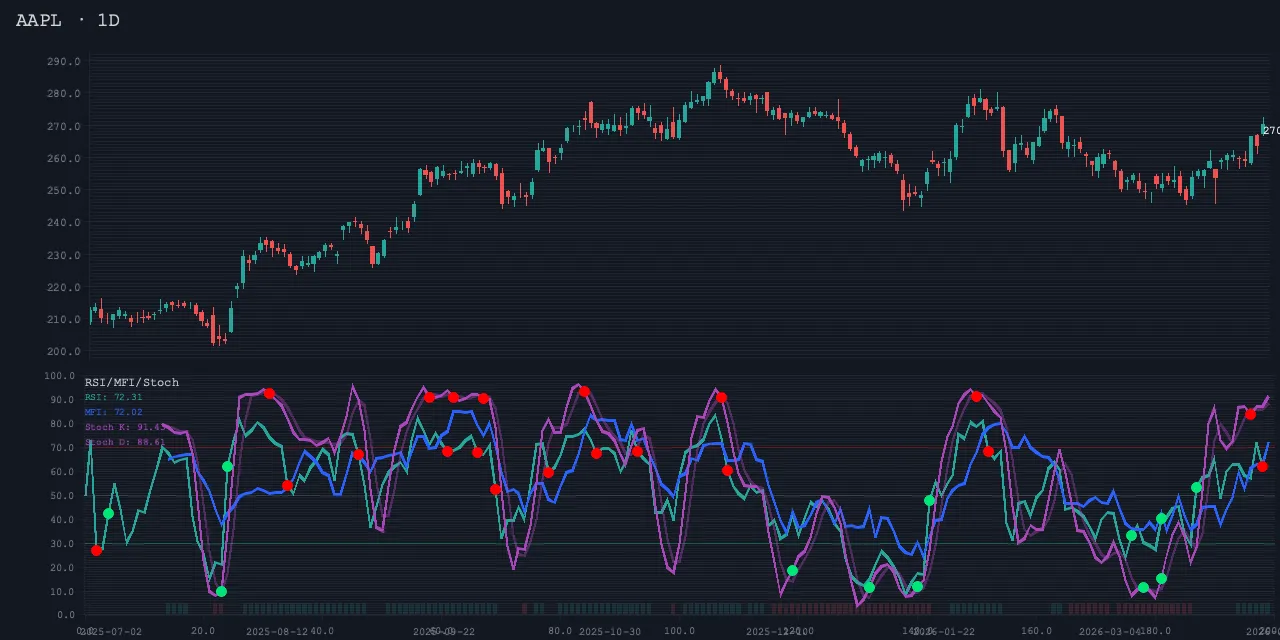

rsi_mfi_stoch

RSI + Money Flow Index + Stochastic combo panel (all 0-100)

Aliases: rsi_combo, combo

Parameters:

Param	Type	Default	Description
rsi_length	integer	14
mfi_length	integer	14
stoch_k	integer	14
stoch_d	integer	3
stoch_smooth	integer	3
overbought	number	70
oversold	number	30
show_entry_dots	boolean	true
show_trend_bars	boolean	true

External

Summary

Name	Aliases
cvd
funding	funding_rate
oi	open_interest
long_short	ls_ratio
fear_greed	fng

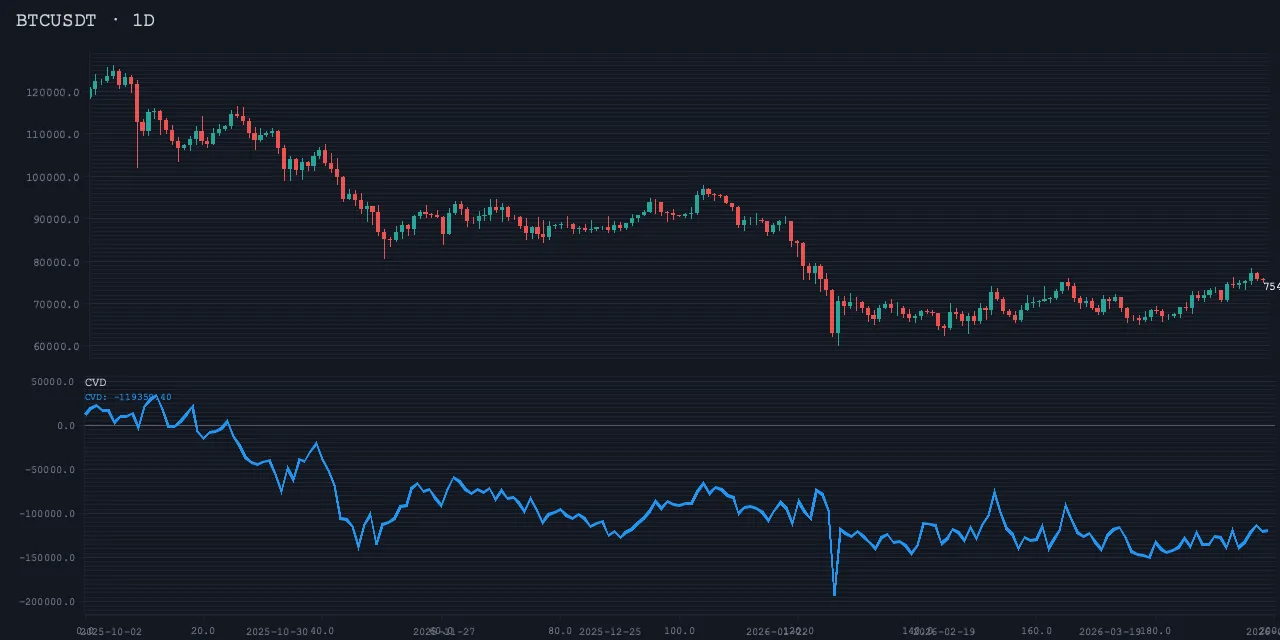

cvd

Cumulative Volume Delta — buy vs sell pressure

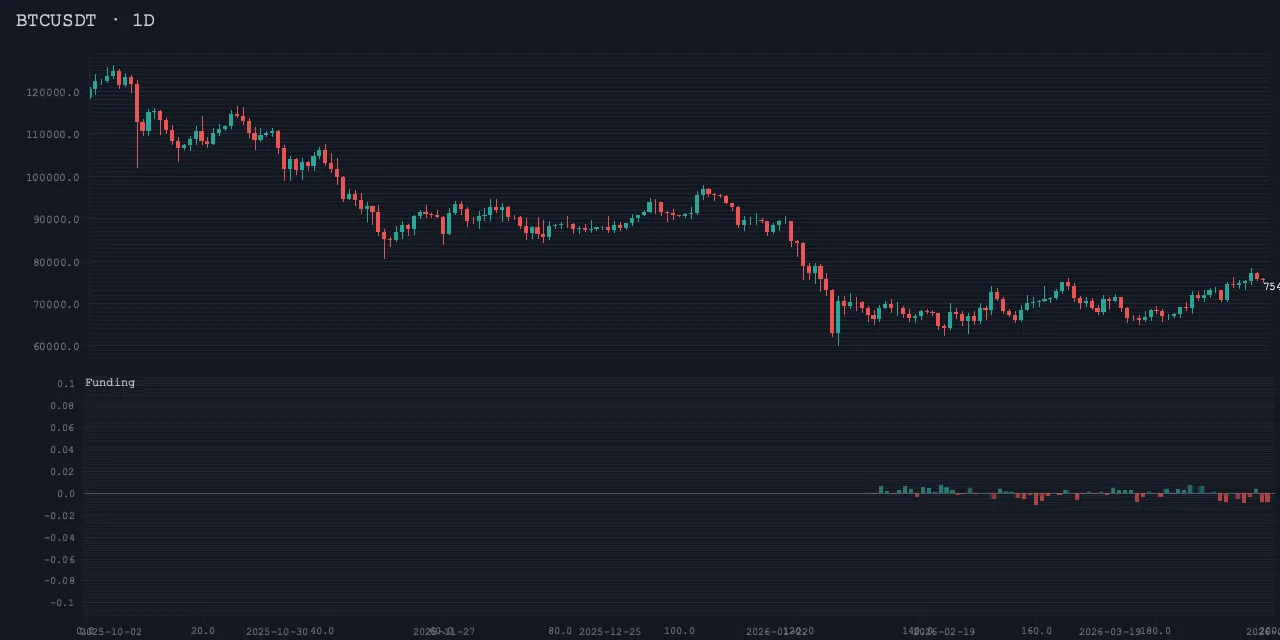

funding

Funding Rate — crypto perpetual futures funding (Binance)

Aliases: funding_rate

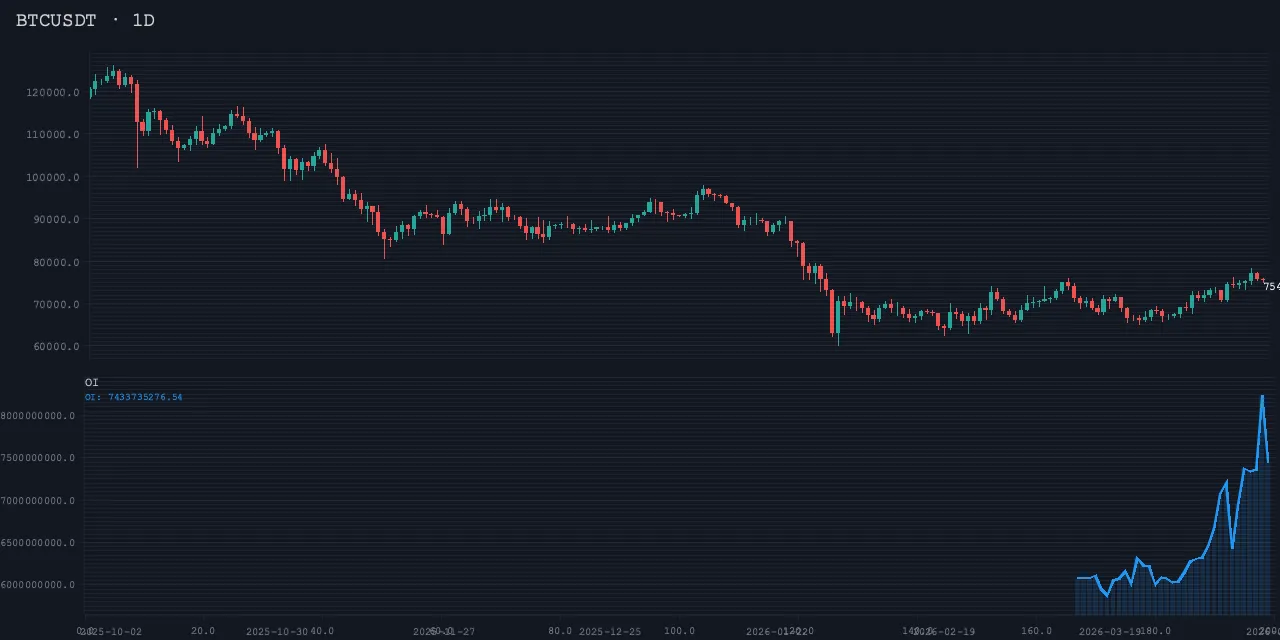

oi

Open Interest — total outstanding futures contracts (Binance)

Aliases: open_interest

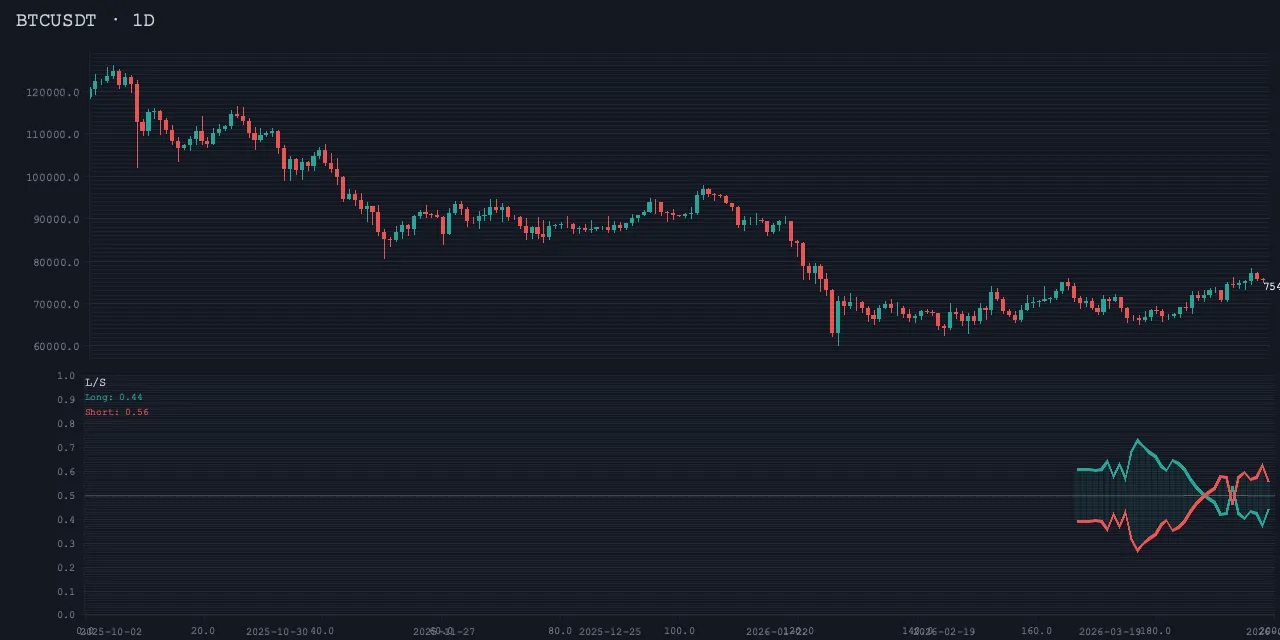

long_short

Long/Short Ratio — account positioning (Binance)

Aliases: ls_ratio

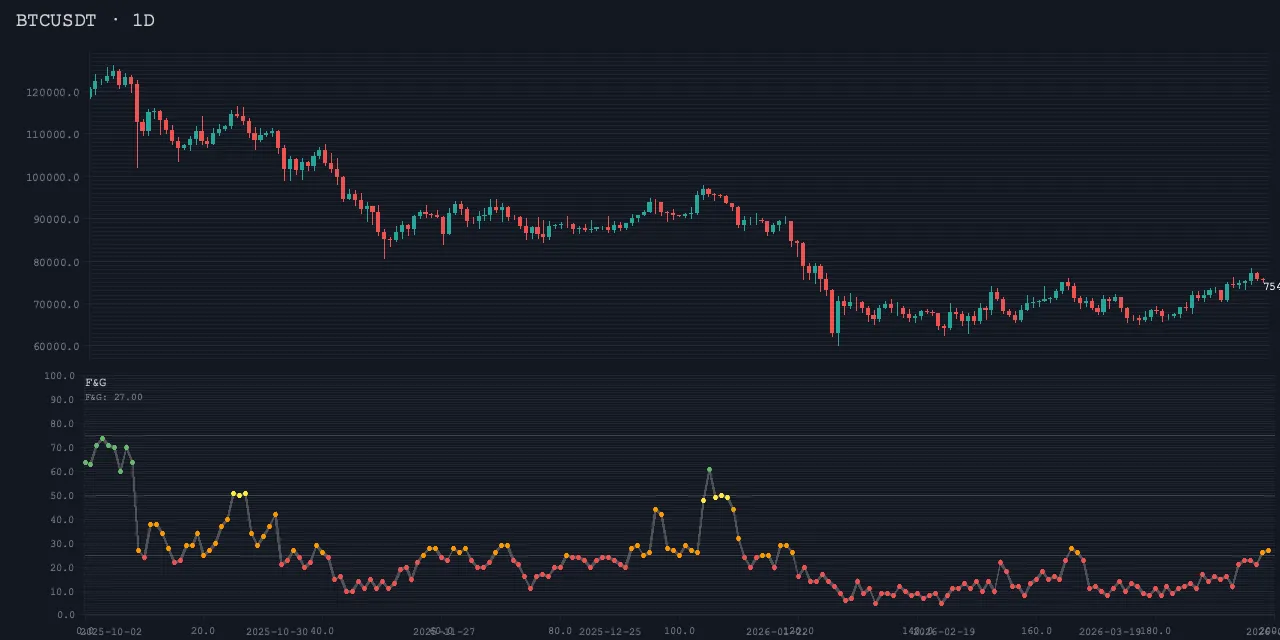

fear_greed

Fear & Greed Index — market sentiment (alternative.me)

Aliases: fng

Parameter examples (MCP)

{"name": "rsi", "length": 21}
{"name": "bbands", "length": 30, "mult": 2.5}
{"name": "volume_profile", "bins": 32, "side": "right"}

Call the list_indicators MCP tool for the authoritative list with each indicator’s description, default parameters, and category at runtime.
